Место происхождения Пекин
Фирменное наименование HUATEC
Сертификация ISO, CE, GOST
Номер модели HUH-1
Количество мин заказа 1 шт.
Упаковывая детали Стандартный экспортный пакет
Время доставки 1-4days
Условия оплаты T/T, PayPal, Western Union
Поставка способности 500 штук в месяц

Свяжитесь со мной для бесплатных образцов и купонов.

Ватсап:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас есть какие-либо проблемы, мы предоставляем круглосуточную онлайн-помощь.

x
Подробная информация о продукте
Цвет Черный Принцип Ультразвуковые
Стандартный JBT 9377-2010、ASTM A1038-2005 Калибровка Калибровка лопаток
Память 1000 данных
Выделить

hardness testing machine

,

handheld hardness tester
Оставьте сообщение
Характер продукции

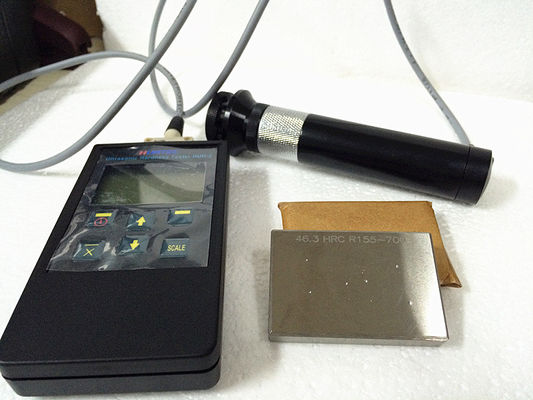

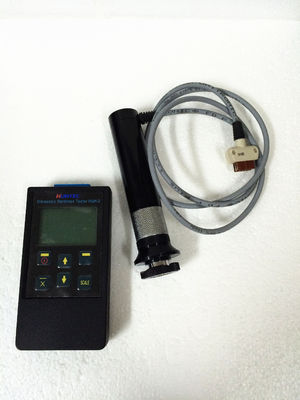

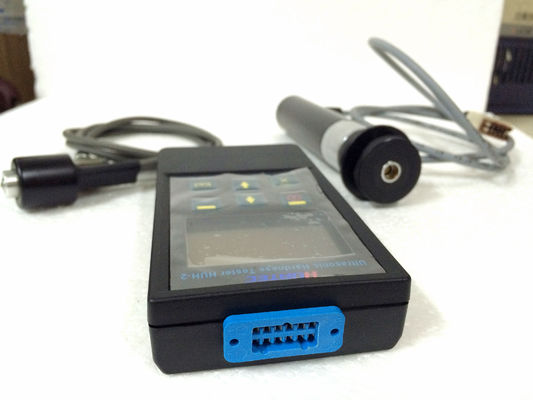

Small / Large Metal and Alloy Articles Portable Hardness Tester Ultrasonic HUH -1



Product information:

It is intended for measuring hardness of metal and alloy articles with Rockwell, Brinell, Vickers consisting of the electronic module.
The principle of tester operation is based on determination of frequency change in free oscillation of the indenter (an acoustic resonator with Vickers diamond pyramid) subjected to the constant force of 50 N.


Advantages:

  1. Measuring hardness of both small and large articles
  2. Measuring hardness of complexly shaped articles, with hard to reach places, in various spatial positions
  3. Convenience and ease of use
  4. PC-connectable via RS-232C interface
  5. High measuring performance
  6. Power source discharge indication and display illumination
  7. Graphical display with lighting
  8. Storing 1000 hardness measurements in the nonvolatile memory
  9. Supply of reference blocks on request



HUH-1 Main technical parameters:

Hardness measurement ranges

  Rockwell Scale
  Brinell Scale
  Vickers Scale

Tensile strength, MPa



20 - 70

90 - 450

230 - 940

370 - 1740

Relative measurement error

Rockwell Scale
 Brinell Scale
 Vickers Scale



± 1

± 3%

± 3%

Chief dimensions, mm

120x60 x25

Category temperature range° C

-5 - +40

Power supply

2 AA Rechargeable batteries

Time of continuous work hours, not less

100 Hours

Weight of electronic module with sensor, kg

0.9

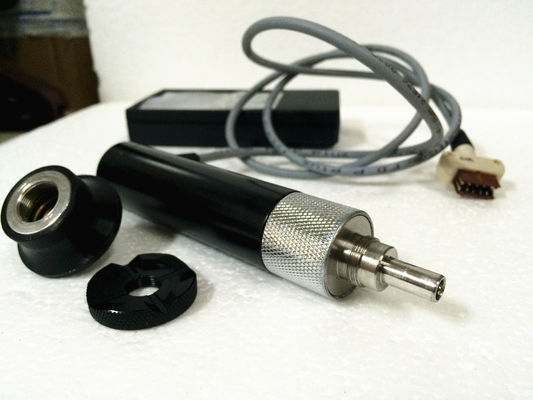

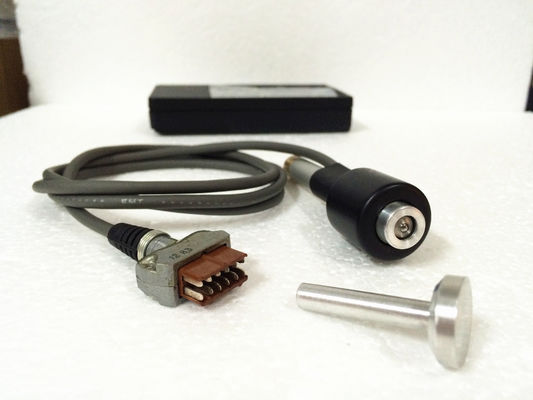

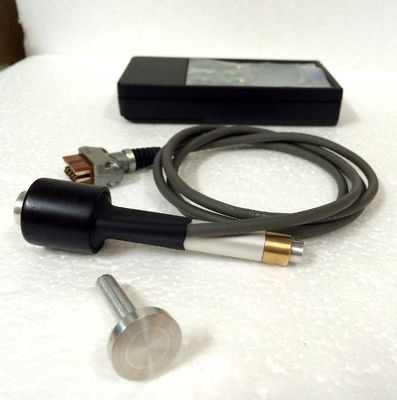

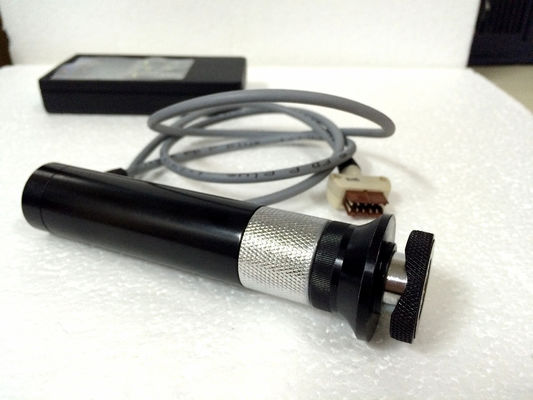

Parameters for Ultrasonic hardness probe and Leeb hardness probe (HUH-2 only)

  Ultrasonic hardness probe Leeb hardness probe (HUH-2)
Length 160mm 140mm
Diameter 25mm 25mm
Indention depth 30μm 300 μm
Test force 14.7N 11Nm
Probe testing life 200,000 times 50,000 times
Min.testing thickness (steel) 1mm 12mm
Min. testing radius 5mm 10mm
Max.surface roughness Ra 2.5 μm Ra 3.2 μm
Data memory 1000 datas 100 datas
Tesing time 4 second 2 second



HUH -1 Ultrasonic Portable Hardness Tester For Small / Large Metal And Alloy 0



HUH -1 Ultrasonic Portable Hardness Tester For Small / Large Metal And Alloy 1



HUH -1 Ultrasonic Portable Hardness Tester For Small / Large Metal And Alloy 2

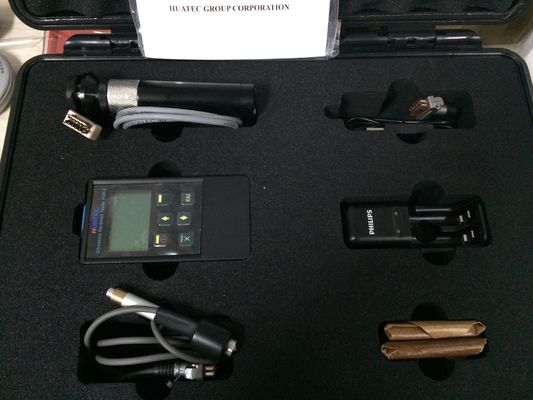

Standard delivery

  1. Hardness tester 1pc
  2. Ultrasonic hardness probe 50N (optional probe 10N and 100N) 1pc
  3. Instruction manual 1pc
  4. Probe cable 1pc
  5. Battery charger 1pc
  6. Carrying case 1pc
  7. Calibration certificate 1pc
  8. Hardness blocks 2pcs
