Magnaflux magnetic particle test equipment mag particle testing equipment

  • Magnaflux magnetic particle test equipment mag particle testing equipment
  • Magnaflux magnetic particle test equipment mag particle testing equipment
  • Magnaflux magnetic particle test equipment mag particle testing equipment
Место происхождения Пекин
Фирменное наименование HUATEC
Сертификация ISO, CE, GOST
Номер модели HCDX-220,HCDX-220AC/DC
Количество мин заказа 1 шт.
Упаковывая детали Стандартный экспортный пакет
Время доставки 1-4days
Условия оплаты T/T, PayPal, Western Union
Поставка способности 500 штук в месяц

Свяжитесь со мной для бесплатных образцов и купонов.

Ватсап:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас есть какие-либо проблемы, мы предоставляем круглосуточную онлайн-помощь.

x
Подробная информация о продукте
Цвет Желтый Лампа Светодиодные
Сила Электронный Использование оборудование для магнитных испытаний
Наименование продукта DGT MT-1A цифровой портативный детектор ошибок магнитных частиц для испытаний Применение Строительная промышленность
Гарантия 12 месяцев, 1 год
Выделить

mt test specimen

,

magnetic strenght meter
Оставьте сообщение
Характер продукции

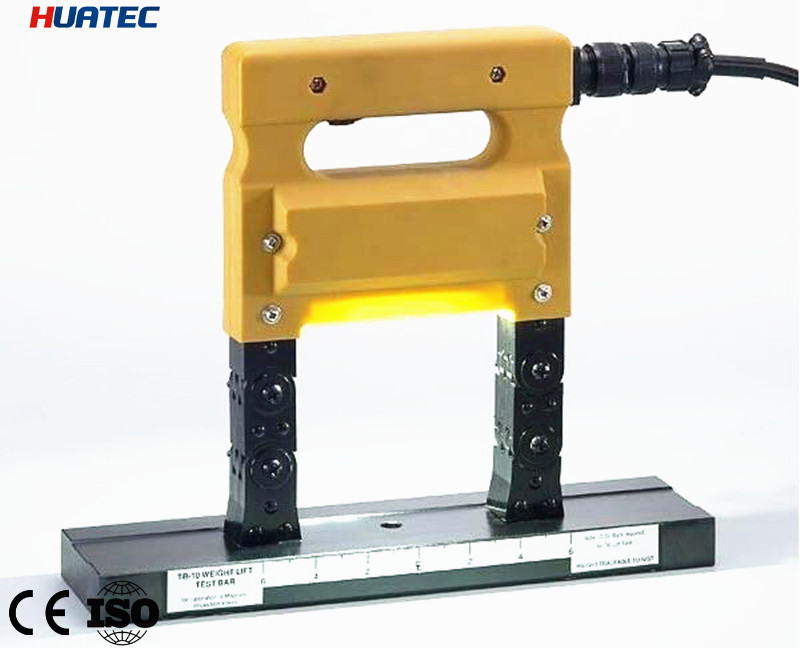

Magnaflux magnetic particle test equipment mag particle testing equipment





Description

HUATEC Group is well-known brand in exporting and manufacturing of Magnetic Particle Testing Unit to overseas markets. This products use testing method by utilizing the Yoke method, to magnetize with some or all of test flaws placed between magnet electrodes and detect flaw of the object to be tested by inducting partial linear magnetic field to the test piece.
This method enables to easily and rapidly detect surface flaw of forged products or welding, part, etc



Features

• To achieve the best inspection effciency

• To form a strong manetic field with a AC or DC type

• To apply dry, wet and fluorescent magnetic particles

• Excellent durability by using a molding type of rubber material with strong water-proof, shock resistance

• To test various objects to be tested by connecting middle poles



Principles of Magnetic Particle Testing

When the material or part under test is magnetized, discontinuities which lie in a direction generally

transverse to the direction of the magnetic field will cause a leakage field to be formed at and above

the surface of the part. The presence of this leakage field and therfore the presence of the discontinuity

is detected by the use of finely divided ferromagnetic particles applied over the surface, some of these

particles being geared and held by the leakage field.

The magnetically held collection of particles forms an outline of the discontinuity and indicates

its location, size, shape and extent.



Technical Parameters

         Type

HCDX-220

Magnetic Yoke Flaw Detector

HCDX-220AC/DC

Magnetic Yoke Flaw Detector

Power supply

/

220V50Hz   12V

Charging power supply

220V 50Hz

220V 50Hz

Using battery

/

MF12—7.2AH

Operating current

AC1.4A

AC1.4A

DC1.7A

Charging time

/

8~15h

Battery working time

/

More than 6 hours

Working interval

1 minute switch on      1 minute off

1 minute switch on       1 minute off

Magnetic electrode distance

0~200mm

0~200mm

Lifting power

A C

>5.5kg

>5.5kg

D C

/

>26kg

Weight

Probe

3.1kg

3.1kg

Battery package

/

2.9kg

Outline

dimension(㎜)

Probe

208×52×146

208×52×146

Battery package

/

160×70×100

Charger

/

75×50×40



Basic Configuration

Type

Sort



HCDX-220



HCDX-220AC/DC

Host

1 set

1 set

Horseshoe probe

2 sets

2 sets

Battery package

/

1

Battery

/

1

Power cord

1

1

Circulating wire

1

1

Instruction manual

1

1

Certificate of conformity

1

1

Warranty card

1 copy

1 copy

Instrument container

1

1



Magnaflux magnetic particle test equipment mag particle testing equipment 0
